Saving Buffered Images to Files

When the image acquisition is stopped, you can save the images stored in the current buffer or in all buffers to files.

1.

In the Toolbar, click to open the Buffer pane.

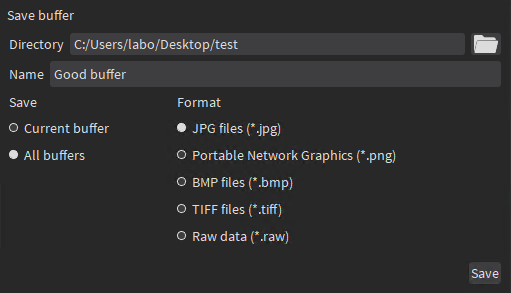

You can configure the buffers in the Save buffer area:

2.

In the Directory and Name fields, specify respectively the directory and the file name.

3.

In the Save area, select the buffers you want to save in the file.

4.

In the Format area, select the format for the images to be saved

5.

Click Save.

Each image is saved into a separate file stored in the chosen directory.
