Overview
The histogram feature, available by clicking
in the Output pane, is a graph that shows the number of pixels in an image at each different intensity value found in that image.
For a grayscale image, the graph displays the intensity values showing the distribution of pixels amongst the grayscale values from left to right, from the darkest to the lightest tones.
For a color image, individual graphs of red, green and blue are superimposed on the same histogram, with intensity values also displayed from left to right, from the darkest to the lightest tones.

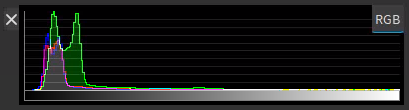

Histogram of a color image
Examples
|

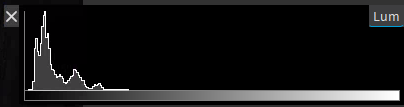

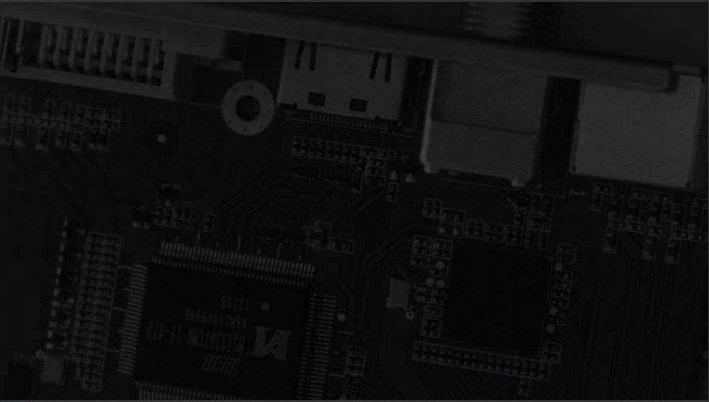

The histogram below shows that the intensity values are concentrated towards the left: The image contains too many dark pixels: |
|
|
|
|
|

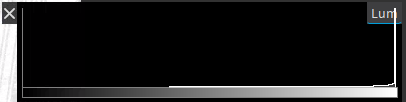

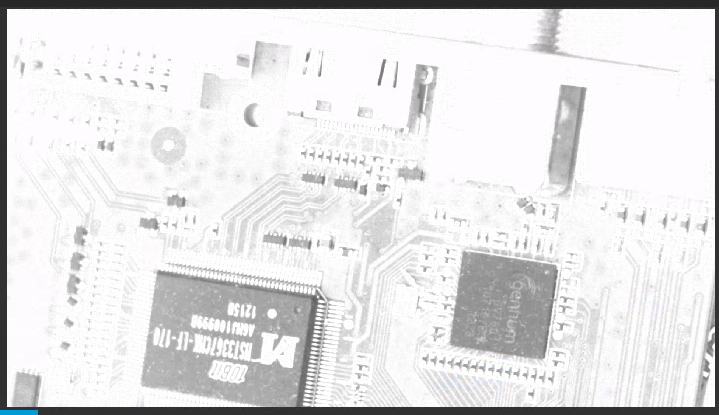

The histogram below shows that the intensity values are concentrated towards the right: The image contains too many light pixels: |
|
|
|
|
|

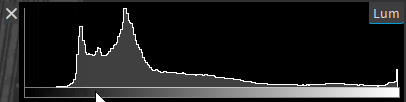

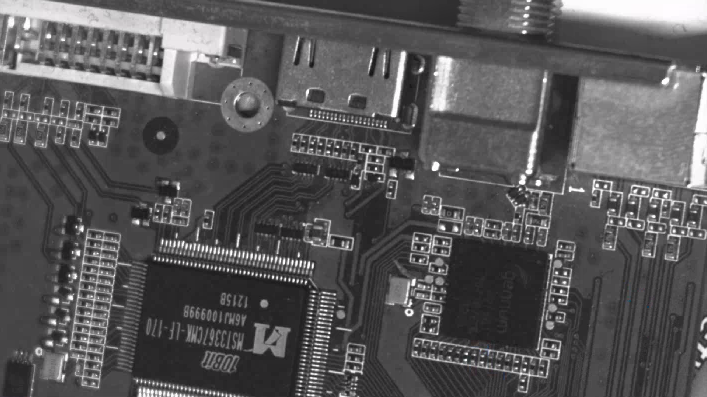

The histogram below shows that the intensity values cover a broad and more central range of intensity values: The image shows a better brightness balance, although it still contains more dark pixels: |
|
|
|
|
Possible actions
| ● | To respectively see the red, green and blue pixel channels in a color image, Click one or more times on RGB. |
| ● | To close the Histogram pane, click the cross on the left. |
If an image format is not supported, the histogram is displayed as RGB values.
