Configurations for Bayer CFA Pixels
Processing Elements for Bayer CFA Pixels vs. Products
|
Elements |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Bayer CFA Decoding | - | - | OK | OK | OK | OK |
| White Balance | - | - | OK | OK | OK | OK |
| LUT Transformation | - | - | OK | OK | OK | OK |
| Pixel Formatting | OK | OK | OK | OK | OK | OK |
Valid Processing Configurations for Bayer CFA Pixels
|
Elements |
Configurations Group #1 | Configurations Group #2 |
|---|---|---|
| Bayer CFA Decoding | Disabled | Enabled |
| White Balance | Not available | Optional |
| LUT Transformation | Not available | Optional |
| Pixel Formatting | Available | Available |
Configurations Group #1 - Bayer CFA Decoding Disabled
Applies to:
The pixel output format is defined by ColorFormat.
| Camera PFNC Pixel Format | ColorFormat | Output PFNC Pixel Format |
|---|---|---|
| Bayer**8 | BAYER8 | Bayer**8 |
| Bayer**10 | BAYER8 | Bayer**8 |
| BAYER10 | Bayer**10 | |
| BAYER16 | Bayer**16 | |
| Bayer**12 | BAYER8 | Bayer**8 |
| BAYER12 | Bayer**12 | |
| BAYER16 | Bayer**16 | |
| Bayer**14 | BAYER8 | Bayer**8 |
| BAYER14 | Bayer**14 | |
| BAYER16 | Bayer**16 | |
| Bayer**16 | BAYER16 | Bayer**16 |
Configurations Group #2 - Bayer CFA Decoding Enabled
Applies to:
The pixel processing chain uses the following elements:
| ● | Bayer CFA Decoder |
| ● | White Balance operator (Optional) |
| ● | Look-Up-table operator (Optional) |
The Look-Up-table operator is configured for RGB color processing.
The processing chain outputs one RGB pixel for each RAW pixel of the input buffer.

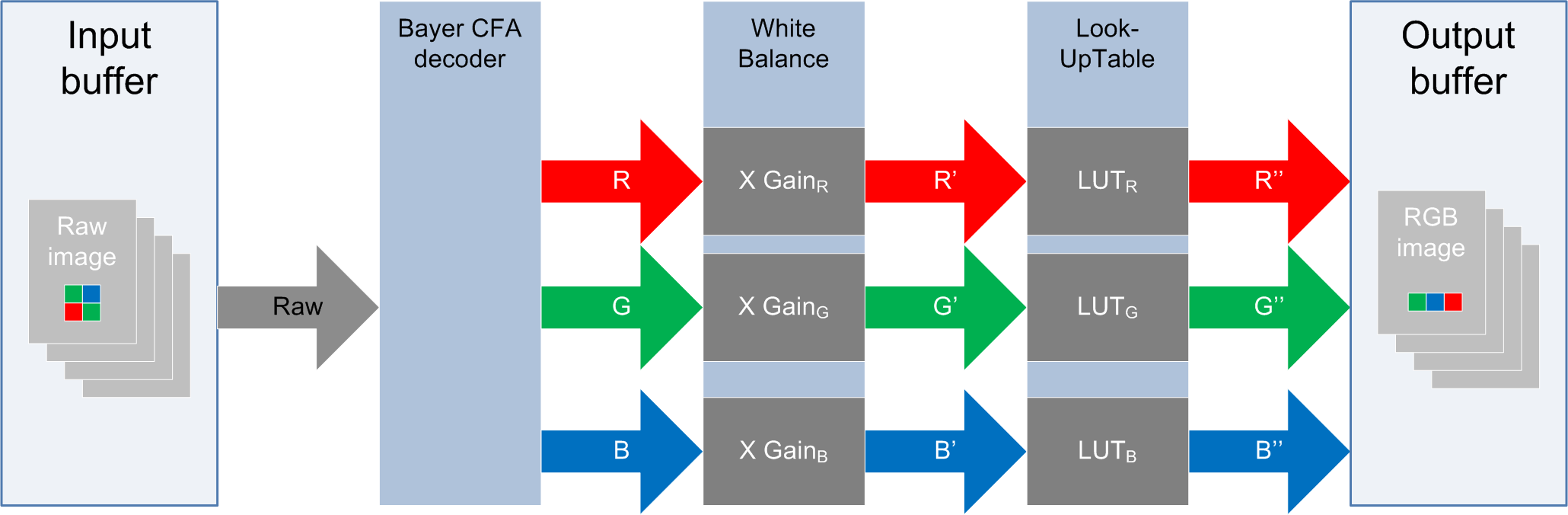

Pixel Processing Chain - Bayer CFA => RGB Configuration
Valid Configurations and Peak Processing Rate [Megapixels/sec]
Applies to:
| Camera PFNC Pixel Format | WBO | Lookup Table Configuration |
ColorFormat | Output PFNC Pixel Format | Max. rate |
|---|---|---|---|---|---|
| Bayer**8 | Optional | 8-bit to 8-bit RGB |
RGB24
|
BGR8 |
125 |
| Bayer**10 | Optional | 10-bit to 8-bit RGB | RGB24
RGB32 RGB24PL |
BGR8 |
125 |
| Bayer**12 | Optional | 12-bit to 8-bit RGB | RGB24
RGB32 RGB24PL |
BGR8 |
125 |
| Bayer14 | Optional | Not available | RGB24
RGB32 RGB24PL |
BGR8 |
125 |
| Bayer16 | Optional | Not available | RGB24
RGB32 RGB24PL |
BGR8 |
125 |
Valid Configurations and Peak Processing Rate [Megapixels/sec]
Applies to:
| Camera PFNC Pixel Format | WBO | Lookup Table Configuration |
ColorFormat | Output PFNC Pixel Format | Max. rate |
|---|---|---|---|---|---|
| Bayer8 | Optional | 8-bit to 8-bit RGB | RGB24
RGB32 RGB24PL |
BGR8 |
250 |
| Bayer10 | Optional | 10-bit to 8-bit RGB | RGB24
RGB32 RGB24PL |
BGR8 |
250 |
| Bayer10 | Optional | 10-bit to 10-bit RGB | RGB30PL |
- |
125 |
| Bayer10 | Optional | 10-bit to 16-bit RGB | RGB48PL |
- |
125 |
| Bayer12 | Optional | 12-bit to 8-bit RGB | RGB24
RGB32 RGB24PL |
BGR8 |
250 |
| Bayer12 | Optional | 12-bit to 12-bit RGB | RGB36PL |
- |
125 |
| Bayer12 | Optional | 12-bit to 16-bit RGB | RGB48PL |
- |
125 |
| Bayer14 | Optional | Not available | RGB24
RGB32 RGB24PL |
BGR8 |
250 |
| Bayer14 | Optional | Not available | RGB42PL |
- |
125 |
| Bayer14 | Optional | Not available | RGB48PL |
- |
125 |
| Bayer16 | Optional | Not available | RGB24
RGB32 RGB24PL |
BGR8 |
250 |
| Bayer16 | Optional | Not available | RGB48PL |
- |
125 |
