1621 Grablink Express

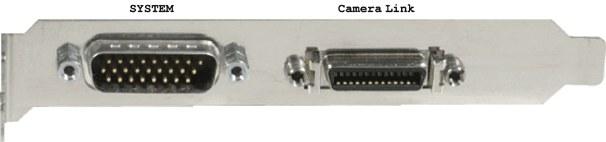

The 1621 Grablink Express board is fitted with a standard profile bracket having 2 connectors:

●

The upper connector, called System Connector, is for system connection, such as external trigger, illumination control or motion encoder.

●

The lower connector, called Camera Link Connector, is for camera connection. It complies with the Camera Link standard Mini Delta Ribbon - MDR - connector and supports PoCL.

The 1621 Grablink Express board is fitted with 2 internal connectors:

●

The System Connector is for system connection, such as external trigger, illumination control or motion encoder.

●

The Camera Power Connector is for powering the camera through PoCL and powering system devices through the SYSTEM connectors.
