Line Trigger Overview

The "line trigger" signal triggers the acquisition of one line of the image.

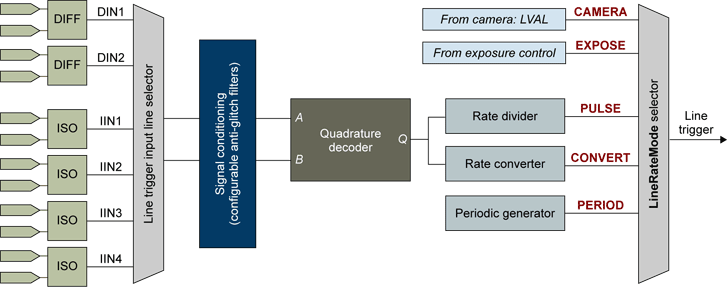

Block diagram

The line trigger is available only for the line-scan acquisition modes of MultiCam, namely WEB, PAGE, and LONGPAGE. It is inoperative for the area-scan acquisition mode.

The line trigger is effective within a MultiCam acquisition sequence. Any line trigger applied outside a MultiCam acquisition sequence is lost.
