Image Coordinate Systems

The conventions below apply to all Open eVision functions and results.

□

Pixel coordinates are usually given as integer numbers.

□

Some results can use subpixel precision with real (floating point) numbers.

□

Some exceptions apply and are documented per librarie.

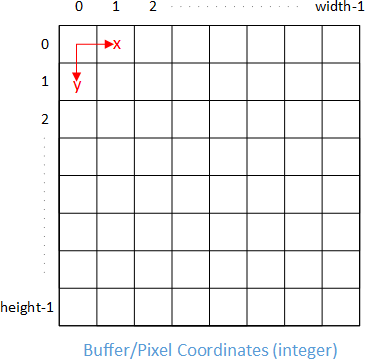

Integer coordinates

●

The origin (0,0) of the coordinate system is the upper left pixel of the image.

●

The lower right pixel is (width-1, height-1).

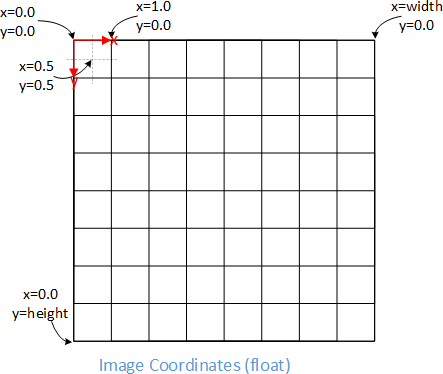

Real coordinates

●

With floating point (x,y) coordinates, the origin is the upper left corner of the upper left pixel.

●

The first pixel area ranges in [0,1[ for X and Y axis.

●

Coordinates greater or equal than the width or the height are outside the image.
