Navigating the Interface

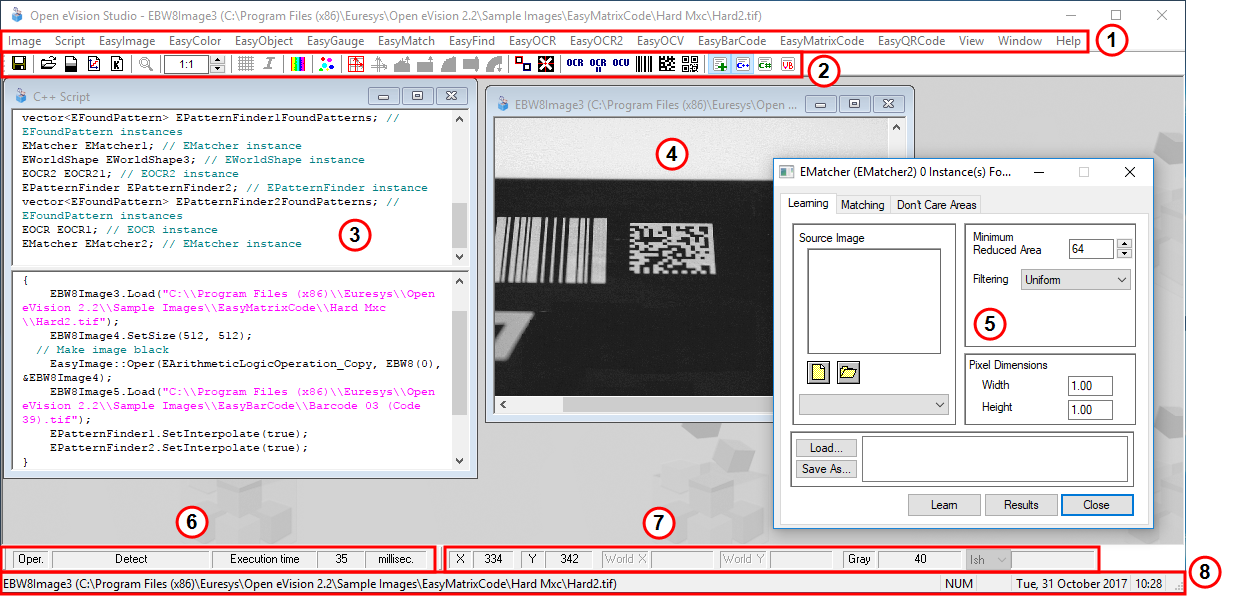

Open eVision Studio graphical user interface (GUI) is organized as follows:

The main menu bar gives you access to the functions and tools of all libraries.

Open eVision Studio does not require any license and allows you to test all libraries. Of course, if you copy code from Open eVision Studio in your own application but you do not have the required license, you will receive a "missing license" error at run-time.

The main toolbar gives you a quick access to main Open eVision objects such as images, shapes, gauges, bar codes, matrix codes...

The script window displays the code, in the programming language you selected, corresponding to the actions you perform in Open eVision Studio. You can save or copy this code in your own application at any time.

The image windows display the open images that you can process using the libraries and tools.

The tool windows enable you to easily configure all the available tools. The corresponding settings are automatically added in the script window for easy reuse.

Most tool windows are floating and you can easily move them outside the Open eVision Studio main window to make a better use of your screen size.

The execution time bar displays the precise time taken for the execution of the selected functions (measured in milliseconds or microseconds) on your computer. This accurate measurement helps you to evaluate the performance of your application.

The color toolbar displays current information such as the X and Y coordinates of the cursor on an image and the corresponding pixel value.

The status bar displays general information about the application such as the active image file path...
