Discovery Tab

The Discovery tab of the Device Management page allows the user to view or edit all the device discovery settings.

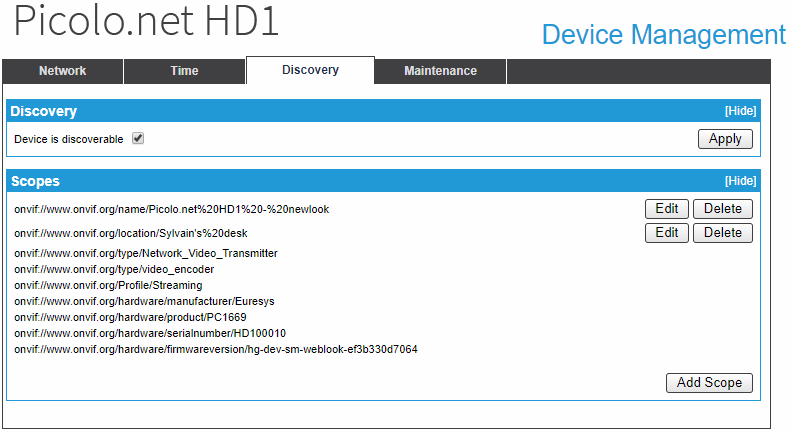

Discovery tab

● The Device is discoverable check box controls the ability to discover the device on the network using the discovery functions of the ONVIF Device Web Service. When checked, the device is discoverable. When unchecked, the device don't reply to the discovery request messages.
● Clicking on the Apply button applies immediately the settings.
● The Scopes panel allows the user to view and create ONVIF device scopes.
● Clicking on the Add Scope button opens a dialog box allowing to create a new scope.
● For user editable scopes, the panel provides an Edit button and a Delete button. Clicking on an Edit button opens a dialog box allowing to modify the scope. Clicking on a Delete button opens a dialog box allowing to delete the scope.
