PC1636 InterPC C2C-Link Adapter

Compatible with ClosedPC1628 Grablink Duo, PC1630 Coaxlink Mono, PC1631 Coaxlink Duo, PC1632 Coaxlink Quad, PC1633 Coaxlink Quad G3, PC1633-LH Coaxlink Quad G3 LH, PC1635 Coaxlink Quad G3 DF, PC1637 Coaxlink Quad 3D-LLE, PC3602 Coaxlink Octo, PC3603 Coaxlink Quad CXP-12, PC3603-4 Coaxlink Quad CXP-12, PC3620 Coaxlink Quad CXP-12 JPEG, PC3620-4 Coaxlink Quad CXP-12 JPEG, PC3621 Coaxlink Mono CXP-12, PC3621-LH Coaxlink Mono CXP-12 LH, PC3622 Coaxlink Duo CXP-12, PC3622-LH Coaxlink Duo CXP-12 LH, PC3623 Coaxlink Quad CXP-12 Value, PC3624 Coaxlink Quad CXP-12 DF, PC3625 Coaxlink QSFP+ and PC3633 Coaxlink Quad CXP-12 3D-LLE.

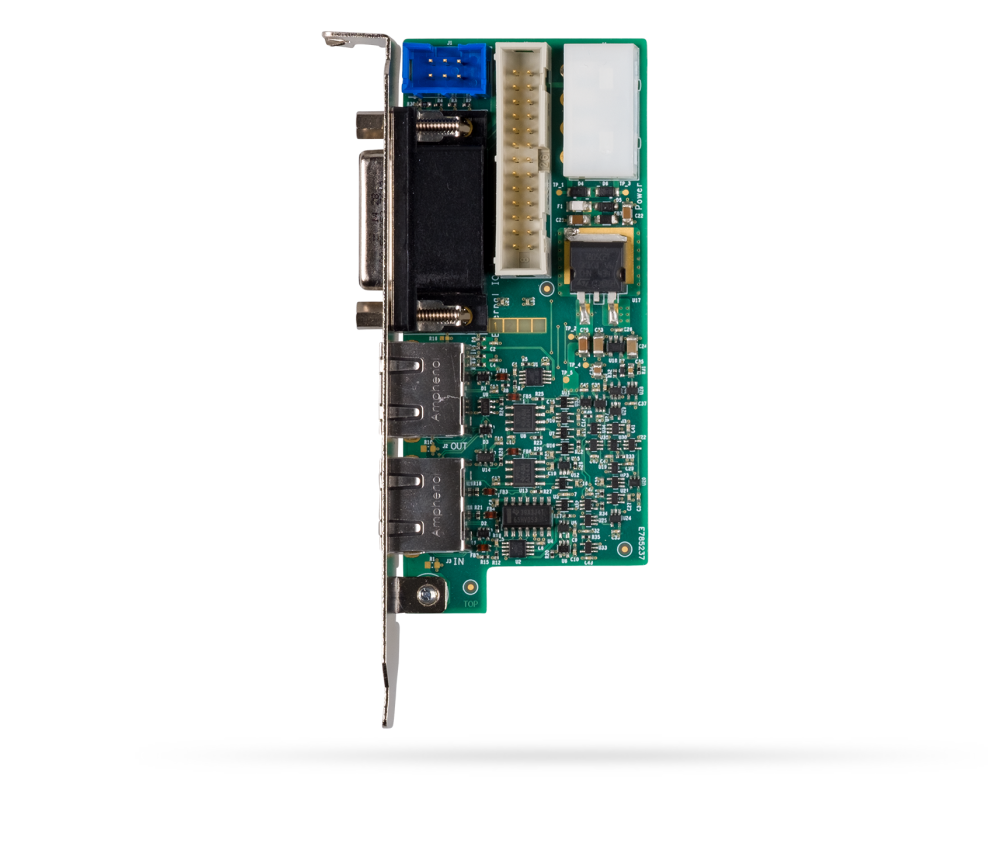

Pictures of PC1636 InterPC C2C-Link Adapter

The PC1636 InterPC C2C-Link Adapter is an accessory product for use as an InterPC C2C-Link extender and/or as a HD26F I/O adapter.

Layout

PC1636 InterPC C2C-Link Adapter

The PC1636 InterPC C2C-Link Adapter product accessory is composed of:

● A printed circuit board assembly fitted with a standard-profile PC bracket.
● A 200-mm 26-way ribbon cable.
● A PC3303 C2C-Link Ribbon Cable.

Connectors

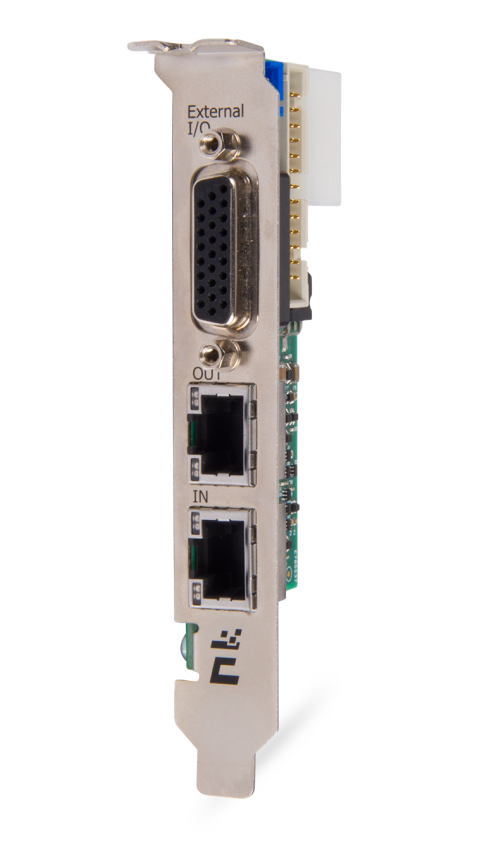

The External I/O connector is a HD26F – 26-pin 3-row high-density female – Sub-D connector fitted on the bracket with UNC 4-40 screws.

The IN connector and the OUT connector are RJ-45 8-pin sockets fitted on the bracket.

The Internal I/O connector is a 26-pin dual-row 0.1" pitch pin header with shrouding.

The C2C-Link connector is a 6-pin dual-row 0.1" pitch pin header with shrouding.

The Internal I/O connector is a 26-pin dual-row 0.1" pitch pin header with shrouding.

The Power Input connector is a 0.2" pitch right-angled Disk Drive Power connector.

LEDs

The IN connector and the OUT connector are each equipped with 2 green/yellow LEDs named respectively L1, L2, L3 and L4.
