Configurations for RGB Pixels
Processing Elements for RGB Pixels vs. Products
Elements |
|
|
|
|
|
|
---|---|---|---|---|---|---|
White Balance | - | - | OK | OK | OK | OK |
LUT Transformation | - | - | OK | OK | OK | OK |
Pixel Formatting | OK | OK | OK | OK | OK | OK |
The processing chain outputs one RGB pixel for each RGB pixel of the input buffer.

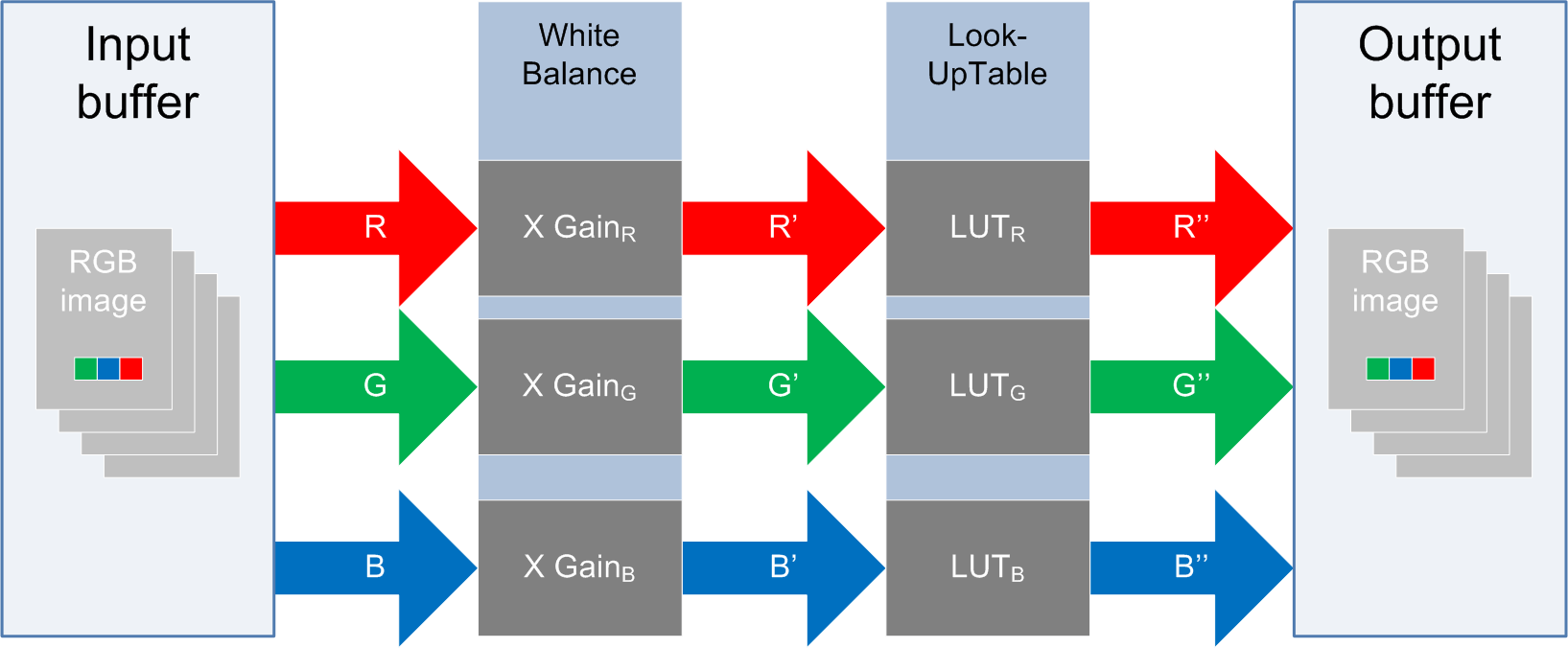

Pixel Processing Chain - RGB => RGB Configuration
Valid Configurations
Applies to:
Camera PFNC Pixel Format | WBO | Lookup Table Configuration |
ColorFormat | Output PFNC Pixel Format |
---|---|---|---|---|
RGB8 | Optional | 8-bit to 8-bit RGB | RGB24
RGB32 RGB24PL |
BGR8 |
Valid Configurations
Applies to:
Camera PFNC Pixel Format | WBO | LUT | ColorFormat | Output PFNC Pixel Format |
---|---|---|---|---|
RGB8 | Optional | 8-bit to 8-bit RGB | RGB24
RGB32 RGB24PL |
BGR8 |
RGB10 | Optional | 10-bit to 8-bit RGB | RGB24
RGB32 RGB24PL |
BGR8 |
RGB10 | Optional | 10-bit to 10-bit RGB | RGB30PL |
- |
RGB10 | Optional | 10-bit to 16-bit RGB | RGB48PL |
- |
RGB12 | Optional | 12-bit to 8-bit RGB | RGB24
RGB32 RGB24PL |
BGR8 |
RGB12 | Optional | 12-bit to 10-bit RGB | RGB36PL |
- |
RGB12 | Optional | 12-bit to 16-bit RGB | RGB48PL |
- |
