Web

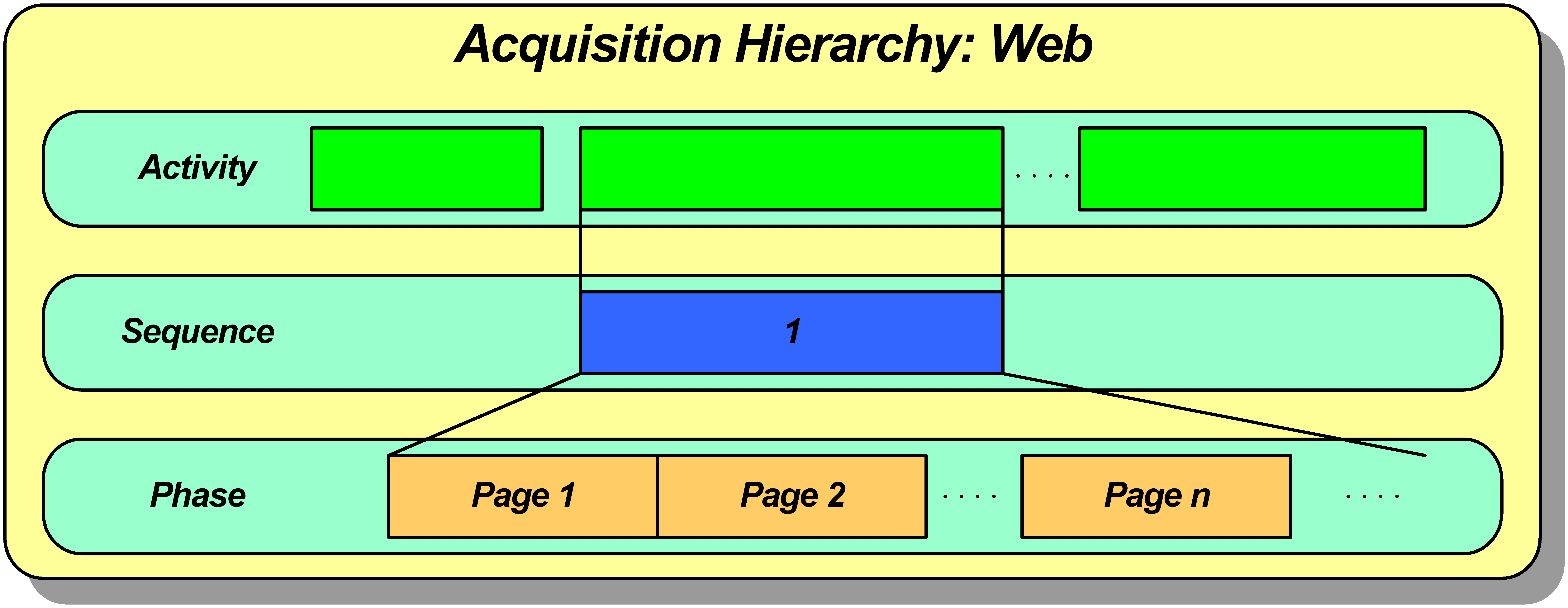

The Web acquisition mode is dedicated to applications where one object of indeterminate size has to be observed by a line-scan camera. The hierarchy of the web mode is shown below:

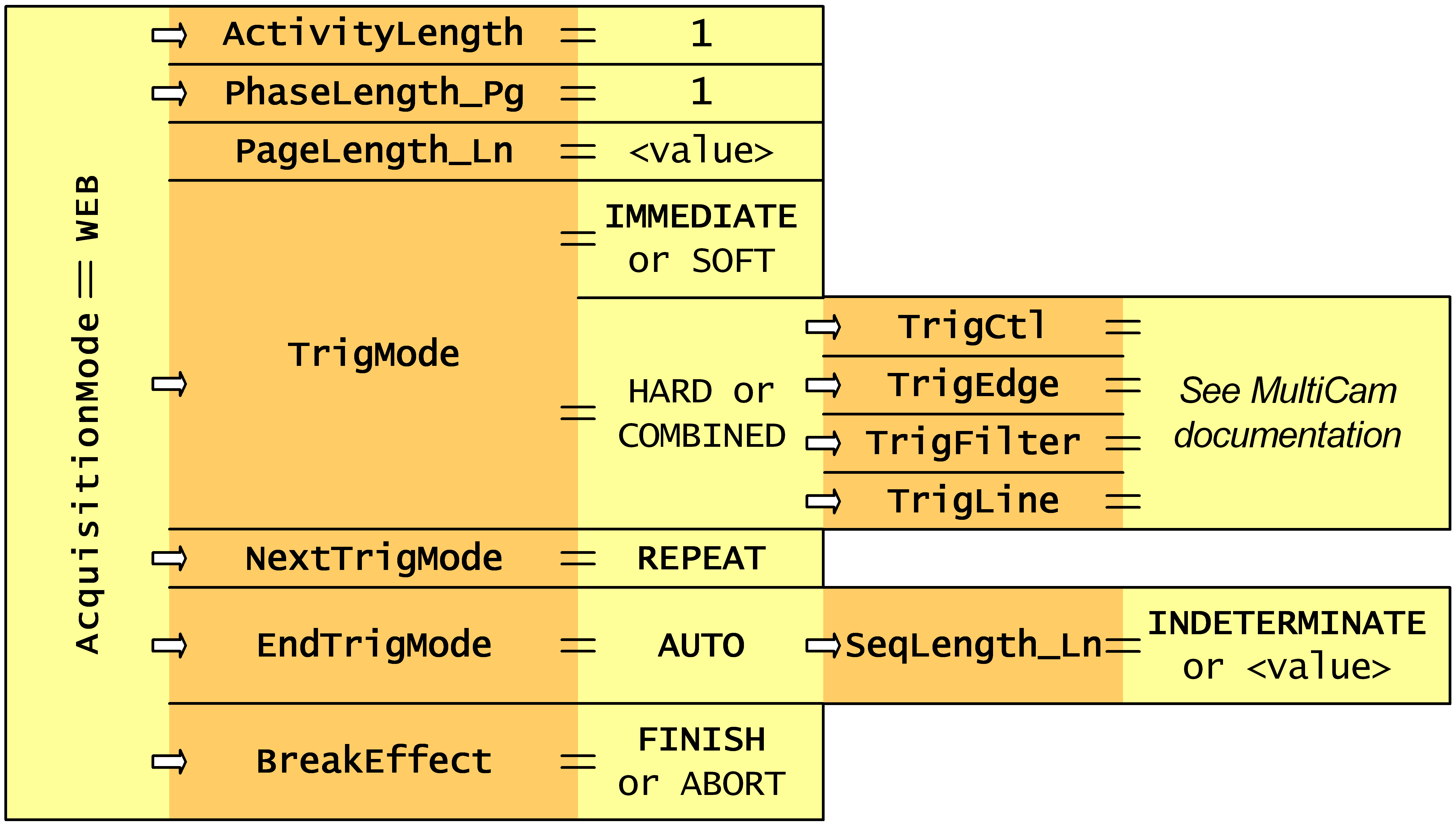

The following table shows the configuration parameters for the mode:
Setting AcquisitionMode = WEB automatically sets the other parameters with the default values written in bold characters. The mode allows a few parameters to be tuned: PageLength_Ln, TrigMode and BreakEffect.
NextTrigMode is automatically set to REPEAT to guarantee continuous acquisition in the sequence.
Choosing HARD or COMBINED for TrigMode requires the user to configure some parameters related to the hardware trigger line
EndTrigMode is necessarily set to AUTO by choosing the Web acquisition mode, SeqLength_Ln determines the number of lines to be acquired in a sequence.
The same remark applies to PageLength_Ln as in the Page mode.
