1636 InterPC C2C-Link Adapter

Compatible with Closed1628 Grablink Duo, 1630 Coaxlink Mono, 1631 Coaxlink Duo, 1632 Coaxlink Quad, 1633 Coaxlink Quad G3, 1633-LH Coaxlink Quad G3 LH, 1635 Coaxlink Quad G3 DF, 1637 Coaxlink Quad 3D-LLE, 3602 Coaxlink Octo, 3603 Coaxlink Quad CXP-12, 3603-4 Coaxlink Quad CXP-12, 3620 Coaxlink Quad CXP-12 JPEG, 3620-4 Coaxlink Quad CXP-12 JPEG, 3621 Coaxlink Mono CXP-12, 3621-LH Coaxlink Mono CXP-12 LH, 3622 Coaxlink Duo CXP-12, 3622-LH Coaxlink Duo CXP-12 LH, 3623 Coaxlink Quad CXP-12 Value, 3624 Coaxlink Quad CXP-12 DF and 3625 Coaxlink QSFP+.

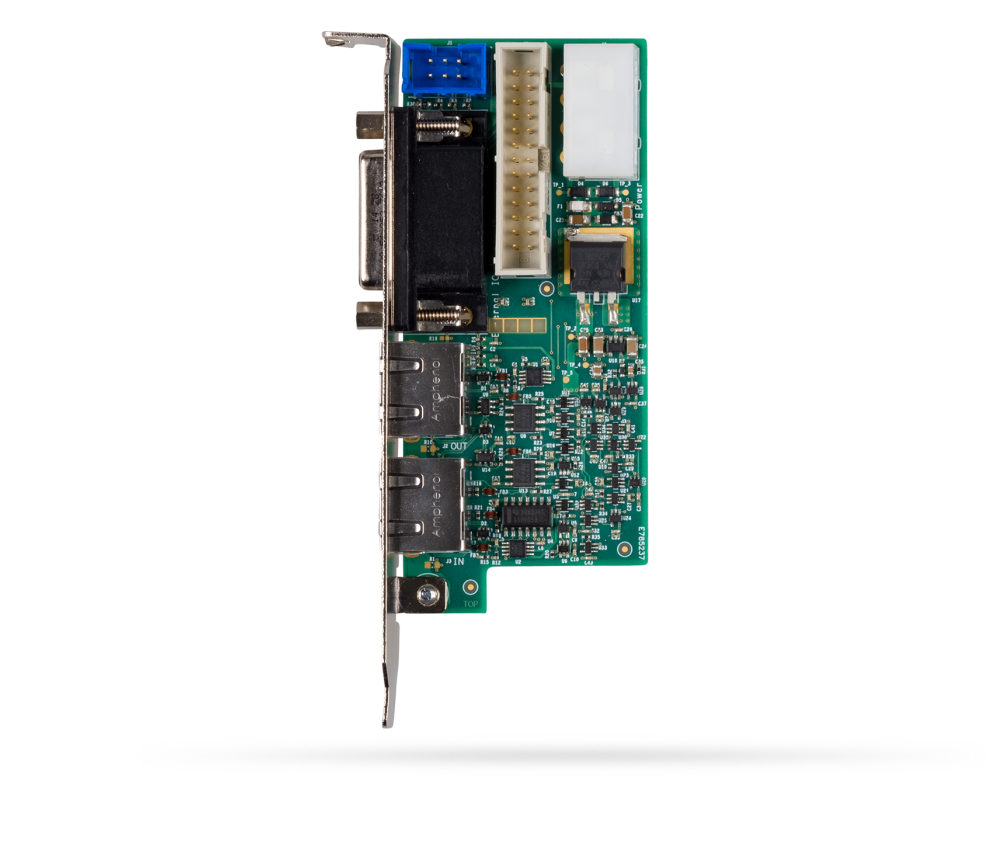

Pictures of 1636 InterPC C2C-Link Adapter

The 1636 InterPC C2C-Link Adapter is an accessory product for use as an InterPC C2C-Link extender and/or as a HD26F I/O adapter.

Layout

1636 InterPC C2C-Link Adapter

The 1636 InterPC C2C-Link Adapter product accessory is composed of:

● A printed circuit board assembly fitted with a standard-profile PC bracket.
● A 200-mm 26-way ribbon cable.
● A 3303 C2C-Link Ribbon Cable.

Connectors

The External I/O connector is a HD26F – 26-pin 3-row high-density female – Sub-D connector fitted on the bracket with UNC 4-40 screws.

The IN connector and the OUT connector are RJ-45 8-pin sockets fitted on the bracket.

The Internal I/O connector is a 26-pin dual-row 0.1" pitch pin header with shrouding.

The C2C-Link connector is a 6-pin dual-row 0.1" pitch pin header with shrouding.

The Internal I/O connector is a 26-pin dual-row 0.1" pitch pin header with shrouding.

The Power Input connector is a 0.2" pitch right-angled Disk Drive Power connector.

LEDs

The IN connector and the OUT connector are each equipped with 2 green/yellow LEDs named respectively L1, L2, L3 and L4.
