Firmware Version Requirements

Important notification to be read before installing and/or using the product on your PC!

The following table lists, for each product/firmware variant combination, the minimum firmware version number required to use this driver:

Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 343
NOTE

If the requirement is not satisfied for all the CoaxlinkEuresys product series name of CoaXPress frame grabbers cards in your system, it is mandatory to apply the Firmware Upgrade procedure prior to using this version of the driver.

The eGrabber driverEuresys software driver for the latest generation of image acquisition products (Coaxlink) checks the compatibility of the firmware installed on every Coaxlink cardEuresys CoaXPress frame grabber. For Coaxlink cards having an incompatible firmware, the GenTLGenICam standard that deals with data transport. TL stands for Transport Layer. driver exposes 0 (zero) Device and the GenICamSet of EMVA standards. It consists of GenApi, GenTL, the SFNC and the PFNC. Browser displays a "Firmware too old" error message:

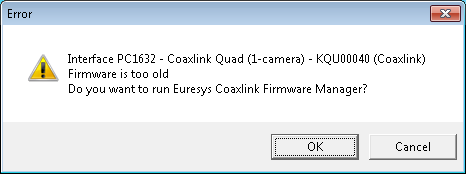

"Firmware too old" error message

The following sections list the minimum firmware version numbers(s) required to using previous versions of the driver.

The following table lists, for each product/firmware variant combination, the minimum firmware version number required to use this driver:

Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 342

The following table lists, for each product/firmware variant combination, the minimum firmware version number required to use this driver:

Product/Firmware Variant Combinations Min. Firmware Version Number
3620 Coaxlink Quad CXP-12 JPEG (1-camera) 340
Other product/firmware variant combinations 338

The following table lists, for each product/firmware variant combination, the minimum firmware version number required to use Coaxlink driverEuresys software driver for Coaxlink cards (superseded by eGrabber driver since release 12.8) 12.7:

Product/Firmware Variant Combinations Min. Firmware Version Number
3602 Coaxlink Octo (1-camera) 335
3603 Coaxlink Quad CXP-12 (1-camera) 335
Other product/firmware variant combinations 333

The following table lists, for each product/firmware variant combination, the minimum firmware version number required to use Coaxlink driver 12.6:

Product/Firmware Variant Combinations Min. Firmware Version Number
3602 Coaxlink Octo (1-camera) 330
3602 Coaxlink Octo (1-camera, line-scan) 330
3602 Coaxlink Octo (2-camera) 330
3602 Coaxlink Octo (2-camera, line-scan) 330
3602 Coaxlink Octo (4-camera) 330
3602 Coaxlink Octo (4-camera, line-scan) 330

3602 Coaxlink Octo (5-camera)

 330
3602 Coaxlink Octo (8-camera) 330
3603 Coaxlink Quad CXP-12 (1-camera) 330
3603 Coaxlink Quad CXP-12 (1-camera, line-scan) 330
3603 Coaxlink Quad CXP-12 (2-camera) 330
3603 Coaxlink Quad CXP-12 (4-camera) 330
3620 Coaxlink Quad CXP-12 JPEG (4-camera) 330
Other product/firmware variant combinations 327

Firmware revision 330 improves CoaXPressInterface and communication standard for industrial cameras using single or multiple coaxial cables. It supports the asymmetric high-speed transmission of images and related control data. This digital interface standard, hosted by the JIIA (Japan Industrial Imaging Association), has been developed for high-speed image data transmission in machine vision applications. (Source:http://www.coaxpress.com/) down-link lock on 3602 Coaxlink Octo, 3603 Coaxlink Quad CXPAcronym for CoaXPress-12, and 3620 Coaxlink Quad CXP-12 JPEG.

If the requirement is not satisfied for all the Coaxlink cards in your system, it is mandatory to apply the Firmware Upgrade procedure prior to using this version of the driver.

The following table lists, for each product/firmware variant combination, the minimum firmware version number required to use Coaxlink driver 12.5:

Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 327

Firmware revision 327 removes a protection against CoaXPress packets not properly terminated. This protection mechanism was put in place in firmware revision 319, and caused issues with cameras that erroneously interrupt low-priority packets to send other low-priority packets.

Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 319
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 317
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 314
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 304
Product Firmware Variants Version

3602 Coaxlink Octo
3603 Coaxlink Quad CXP-12
3620 Coaxlink Quad CXP-12 JPEG

All firmware variants 290
1629 Coaxlink Duo PCIe/104-EMB
1630 Coaxlink Mono
1631 Coaxlink Duo
1632 Coaxlink Quad
1634 Coaxlink Duo PCIe/104-MIL
1637 Coaxlink Quad 3D-LLE 		All firmware variants 294
1633 Coaxlink Quad G3
□ 1-camera, 4-data-stream
□ 4-camera
□ 4-camera, line-scan
294
1633 Coaxlink Quad G3 Other firmware variants 299
1635 Coaxlink Quad G3 DF All firmware variants 299
Product/Firmware Variant Combinations Min. Firmware Version Number
All firmware variants of 3602 Coaxlink Octo, 3603 Coaxlink Quad CXP-12 and 3620 Coaxlink Quad CXP-12 JPEG 290
All firmware variants of other products 294
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 288
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 283
Product/Firmware Variant Combinations Min. Firmware Version Number
All firmware variants of 3602 Coaxlink Octo 274
All firmware variants of 3603 Coaxlink Quad CXP-12 274
Other product/firmware variant combinations 273
Product/Firmware Variant Combinations Min. Firmware Version Number
1638 Coaxlink Quad CXP-3 (4-camera)
 272
Other product/firmware variant combinations 274
Product/Firmware Variant Combinations Min. Firmware Version Number
3603 Coaxlink Quad CXP-12 (1-camera)
 268
3603 Coaxlink Quad CXP-12 (4-camera)
Other product/firmware variant combinations 266
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 258
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 251
Product/Firmware Variant Combinations Min. Firmware Version Number
1633 Coaxlink Quad G3 (1-camera) 248
1635 Coaxlink Quad G3 DF (1-camera)
1635 Coaxlink Quad G3 DF (1-df-camera)
3602 Coaxlink Octo (1-camera)
3602 Coaxlink Octo (2-camera)
1637 Coaxlink Quad 3D-LLE (1-camera) 246
Other product/firmware variant combinations 245
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 240
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 232
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 229
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 228
Minimum firmware version per product and firmware variant
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 226
Minimum firmware version per product and firmware variant
Product/Firmware Variant Combinations Min. Firmware Version Number
All product/firmware variant combinations 224
Minimum firmware version per product and firmware variant
Product/Firmware Variant Combinations Min. Firmware Version Number
1633 Coaxlink Quad G3 - 4-camera 222
1637 Coaxlink Quad 3D-LLE - 1-camera 221
1638 Coaxlink Quad CXP-3 - 4-camera 219
Other product/firmware variant combinations 217
