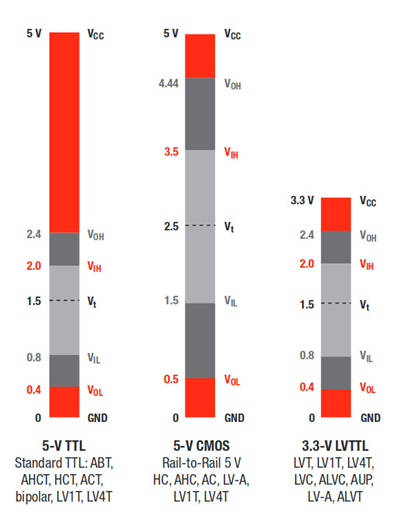

TTL, 5 V CMOS and LVTTL Levels

Colors legend

□

Dark gray: noise margin,

□

Light gray: transition range, low and high level are unspecified

Voltage levels

□

VIL: maximum low-state voltage @receiver input

□

VIH: minimum high-state voltage @receiver input

□

VOL: maximum low-state voltage @driver output

□

VOH: minimum high-state voltage @driver output

□

Vt: threshold level, typically at the middle of the transition range
