Debugging

CustomLogic does not require any additional hardware to program the FPGA.

However, to use the debugging feature of Vivado (ChipScope), you may purchase the 3613 JTAG Adapter Xilinx for Coaxlink (1) to connect the Xilinx Platform Cable USB II programmer (2) to the FPGA.

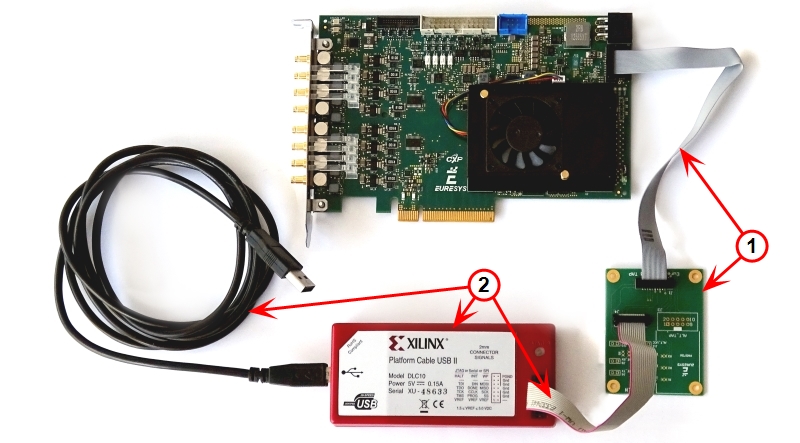

Xilinx Platform Cable USB II programmer (2) connected to 3602 Coaxlink Octo through a 3613 JTAG Adapter Xilinx for Coaxlink (1)

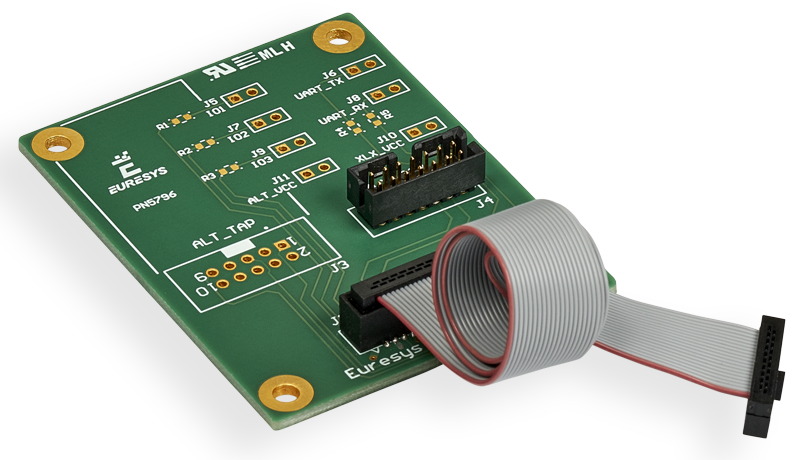

3613 JTAG Adapter Xilinx for Coaxlink
