Block Diagrams

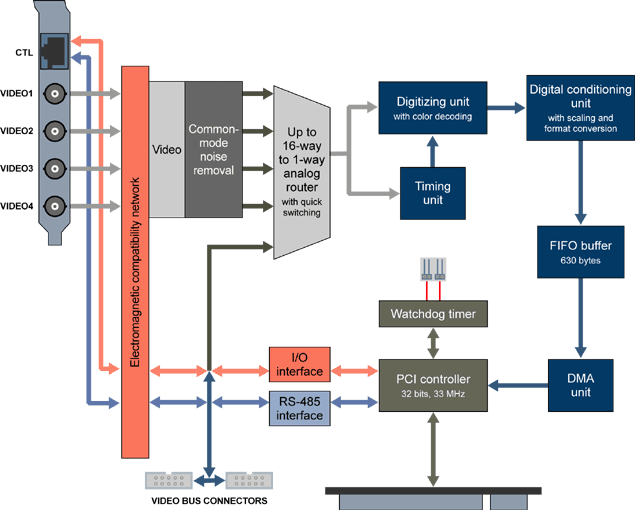

Picolo Pro 3 block diagram

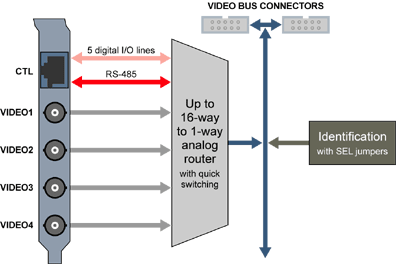

Module Pro 3 block diagram
Module 12 Pro 3 block diagram
|
|
|
|
|
|
||
|
|
||
|
|
||
|
|
|
|
|
