Classifying New Images

●

In Deep Learning Studio:

□

Add new images to the dataset and refresh the results.

□

Open the Inference tests tab to classify the new images and display the detailed results for these images.

□

You can also export the results to CSV or export the heatmap from this tab.

□

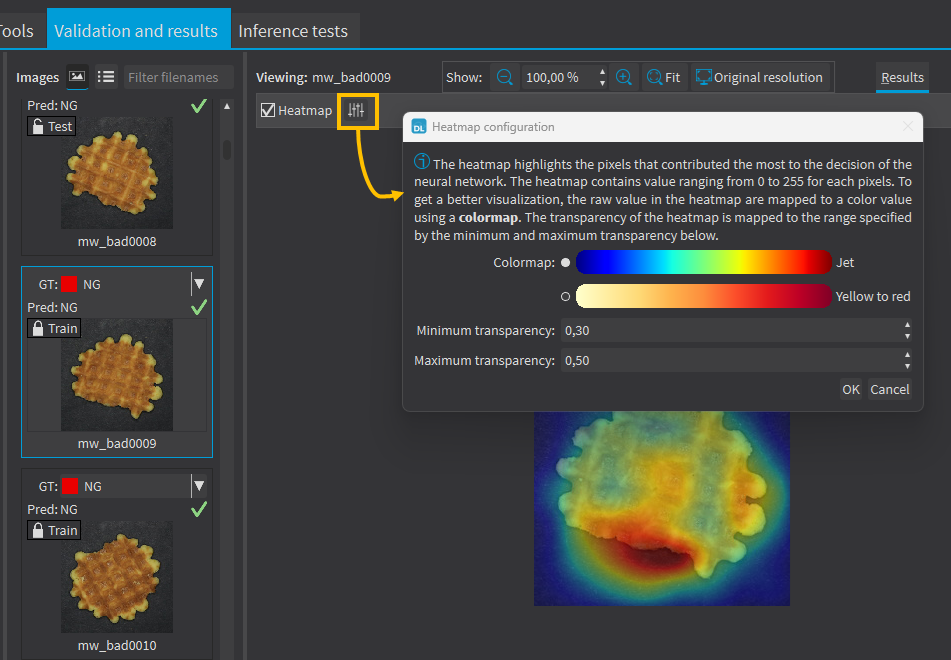

In the image viewer, you can enable or disable the heatmap visualization and configure how the heatmap is displayed (color map and transparency).

●

Once the classifier is trained, call EClassifier::Classify to classify an Open eVision image.

This method returns a EClassificationResult object In a general content, the term object should be understood with the meaning of a class instance. In EasyObject, an object is a maximally-sized area of adjacent connected pixels belonging to the layer foreground.:

□

EClassificationResult::GetBestLabel() returns the most probable label for the image.

□

EClassificationResult::GetBestProbability() returns the probability associated with the most probable label.

□

EClassificationResult::GetProbability(label) returns the probability associated with the given label.

□

EClassificationResult::GetRanking(label) returns the ranking of the given label. The ranking goes from 1 (most probable) to EClassificationResult::GetNumLabels() (least probable).

□

EClassificationResult::GetHeatmap and EClassificationResult::GetColorizedHeatmap return a heatmap highlighting the pixels that have contributed the most to get the most probable label.

- The heatmap is only available when the classifier property EClassifier::ComputeHeatmapWithResult is set to True.

- Use EClassificationResult::HasHeatmap to check if the result contains a heatmap.

●

You can also do batch classification or directly classify a vector of Open eVision images:

□

Images are processed together in groups determined by the batch size.

□

On a GPU, it is usually much faster to classify a group of images than a single image.

□

On a CPU, implement a multithread approach to accelerate the classification. In that case, each thread must have its own instance of EClassifier (see code snippets).

The batch classification has a tradeoff between the throughput (the number of images classified per second) and the latency (the time needed to obtain the result of an image): on a GPU, the higher the batch size, the higher the throughput and the latency. So, use batch classification to improve the classification speed at the cost of a longer time before obtaining the classification result of an image.

●

Use EClassifier::GetHeatmap(img, label) to obtain a heatmap highlighting the pixels that contribute the most to a label.

□

In some cases, this heatmap can provide a rough localization of the object corresponding to the label.

□

The heatmap is colored, and the important parts are displayed in red.
